DC-ITRoom QuartzITe 9.3
Modular room-in-room system with extended basic protection against major physical hazards
Protection against major physical hazards
Fire protection: Safety first. Plus 30 minutes increased security with the DC-ITRoom QuartzITe 9.3
The DC-ITRoom QuartzITe 9.3 is F90 system-tested according to DIN 4102 and EI 90 according to EN 1363 plus at least 30 minutes compliance with the limit values of EN 1047-2 for temperature rise and relative humidity.

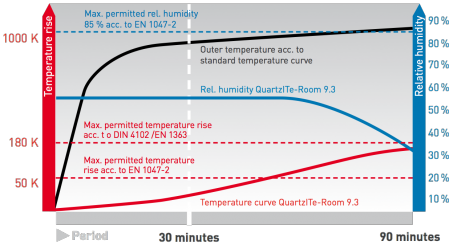

During the test, the inner temperature rises during the first 30 minutes. Firing must not exceed the limit value of 50 Kelvin and 85% relative humidity. After this period, the limit values acc. to DIN 4102/EN 1363 are admissable. This test scenario reproduces the material behaviour of constructional components and the compatibility of critical connections with each other.
Features
- Modular room-in-room system consisting of wall, floor and ceiling elements
- Easy to service, innovative cable and tube duct system
- Extended IT basic protection against major physical hazards (fire, burglary, water, dust, EMC ...)
- System-tested fire protection EI 90 following EN 1363 and 30 minutes EN 1047-2
- Constructional IT protection according to Bitkom DC category B, BSI, EN 50600
Design features
- Modular construction
- Removable and replaceable, expandable

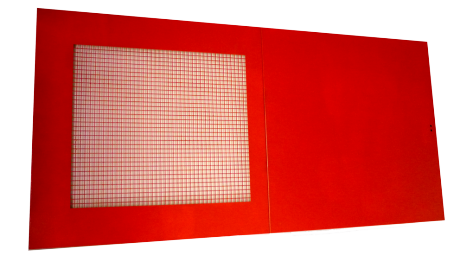

- Sandwich panels with sheet steel cassette construction and a heat insulating, non-inflammable (A1) core
- Panel thickness wall and ceiling approx. 100mm
- Soft- or hard duct system for cable and tube entry
- Optional cable duct system for customer's opening and closing
- Pneumatic overpressure slide for pressure release in case of fire extinguishing systems
- Electrical ventilation slides for fresh/exhaust air
Overpressure slide for pressure release in case of fire extinguishing systems
New cable duct system
- Designed for cables and cable bundles
- Opening and closing by customer
- Easy installation and maintenance
- Fully operational immediately after installation
- No service charges for cable ducts
- Easy installation of additional cables
- Suitable for frequent replacing of cables
- No dirt
Test certificates
- EI90 system test acc. to EN 1363 with at least 30 minutes compliance with limit values of EN 1047-2 for temperature rise <50K and relative humidity <85%
- Burglar protection RC 2 following EN 1627-1630, door optionally RC 3
- Dust protection IP 5x acc. to EN 60529
- Protection against splashing water IP x6 acc. to EN 60529
- Smoke gas tightness following EN 1634-3
- Protection against stagnant water, 72 hours, 40 cm, max. 20 water drops
- EMC protection
Options:
- Various door sizes
- Mechanical key lock or access control system
- Sliding door closer incl. electro-mechanical door holder (with or without smoke switch control)
- Electro-hydraulic door drive
- Various hard duct systems and sizes
- Electrical control
- Lighting system
- Ventilation and overpressure slide (also available as combined system)
Additional options:
- Raised floor
- Fire alarm system
- Early fire alarm system
- Monitoring and energy efficient systems
- Burglar alarm system
- Fire extinguishing system
- UPS
- Free cooling
- 482,6 mm (19") rack
System test for increased security
The QuartzITe series was tested according the relevant building standards of DIN (German Institute for Standardization) and EN (European standard)
Advantage: The installation of IT-Rooms in existing buildings
