DC-ITRoom QuartzITe 9.0

Modular room-in-room system with basic protection against major physical hazards

DC-ITRoom QuartzITe 9.0

Protection against major physical hazards

Anti Burglary
Burglary/ Theft
Explosion
Explosion
Emission protection
Eavesdropping / Radiation
Fire protection
Fire
Fire protection
Corrosive gases
Noise protection
Noise
Debris load
Debris
Vandalism
Vandalism
Water and Dust protection
Extinguishing water
External access protection
Unauthorized access

Features

  • Modular room-in-room system consisting of wall and ceiling elements.
  • Easy to service, innovative cable and tube duct system.
  • Basic IT protection against major hazards (fire, burglary, water, dust, EMC ...)
  • System-tested fire protection EI 90 following EN 1363.
  • Constructional IT protection according to Bitkom DC category A.

Design features

  • Modular construction.
  • Removable and replaceable, expandable.
  • Sandwich panels with sheet steel cassette construction and a heat insulating, non-inflammable (A1) core.
  • Panel thickness wall/ceiling approx. 100 mm.
  • Soft or hard duct system for cable and tube entry.
  • Optional cable duct system for customer's opening and closing.
  • Fire dampers for pressure release or for fresh/exhaust air.
DC-ITRoom QuartzITe 9.3

Fire dampers for pressure release in case of fire extinguishing systems or for fresh/exhaust air.

New cable duct system

  • Designed for cables and cable bundles.
  • Opening and closing by customer.
  • Easy installation and maintenance.
  • Fully operational immediately after installation.
  • No service charges for cable ducts.
  • Easy installation of additional cables.
  • Suitable for frequent replacing of cables.
  • No dirt.
DC-ITRoom QuartzITe 9.3

Test certificates

  • EI90 system test acc. to EN 1363.
  • Burglar protection RC 2 following EN 1627-1630, door optionally RC 3.
  • Dust protection IP 5x acc. to EN 60529.
  • Protection against splashing water IP x6 acc. to EN 60529.
  • Protection against stagnant water (72 hours, 40 cm, max. 20 water drops).
  • EMC protection.
  • DC-ITRoom QuartzITe 9.3
    DC-ITRoom QuartzITe 9.3
    DC-ITRoom QuartzITe 9.3
    DC-ITRoom QuartzITe 9.3

    Options:

  • Various door sizes
  • Mechanical key lock or access control systems
  • Sliding door closer incl. electro-mechanical door holder (with/without smoke switch control)
  • Electro-hydraulic door drive
  • Various hard duct systems and sizes
  • Electrical control
  • Lighting system
  • Slide for pressure release or for fresh/ exhaust air
  • Additional options:

  • Raised floor
  • Fire alarm system
  • Early fire alarm system
  • Monitoring and energy efficient systems
  • Burglar alarm system
  • Fire extinguishing system
  • UPS
  • Free cooling
  • 482,6 mm (19") rack
  • System test for increased security

    The QuartzITe series was tested according to the relevant building standards of DIN (German Institute for Standardization) and EN (European standard).

    System Tested Label

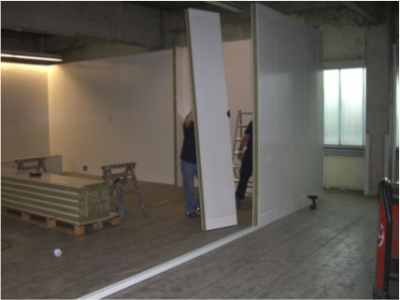

    Advantage: The installation of IT-Rooms in existing buildings

    DC-ITRoom QuartzITe 9.3
    DC-ITRoom QuartzITe 9.3
    DC-ITRoom QuartzITe 9.3
